SATEL-TR49

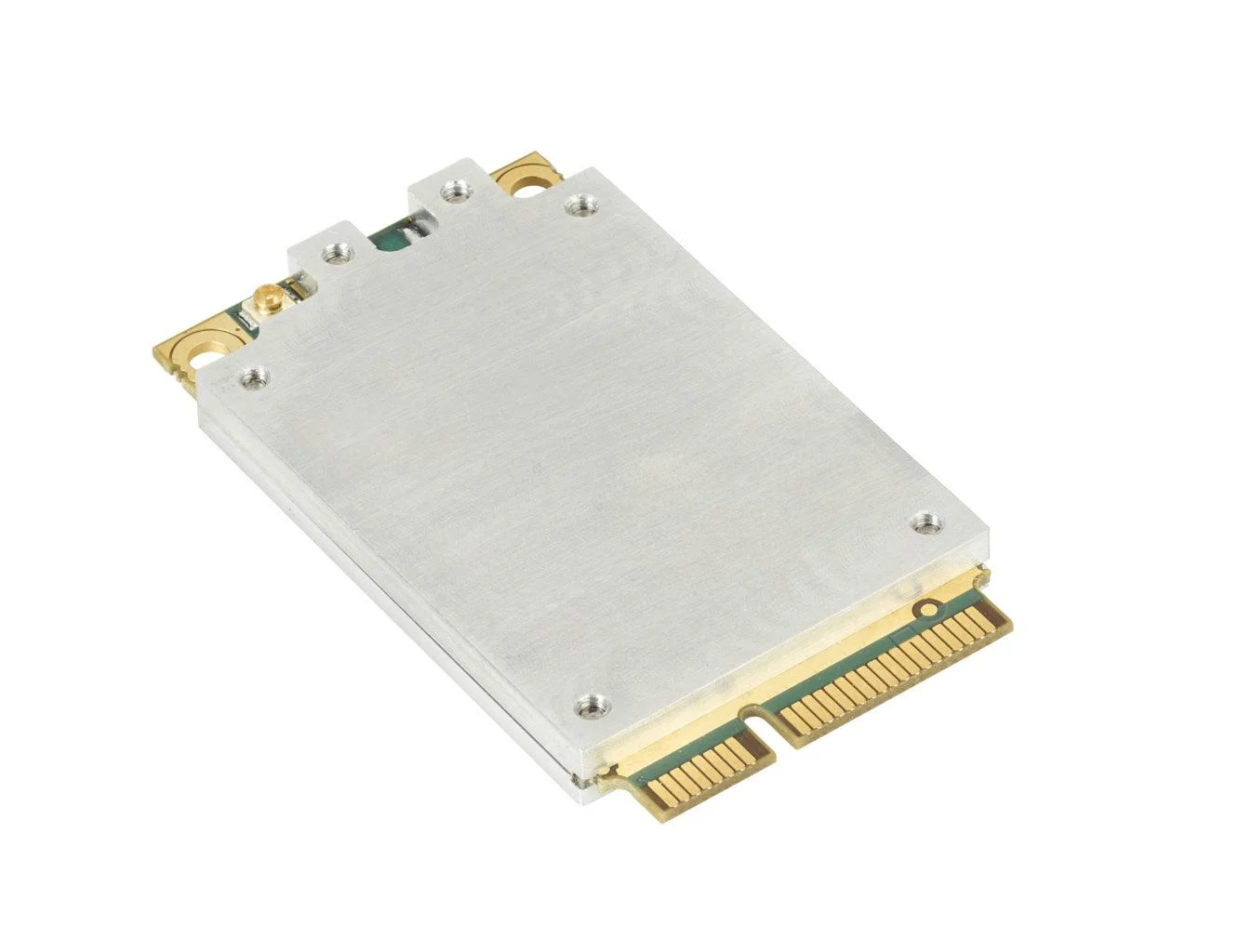

SATEL-TR49 is a small dual band and multimode transceiver.
Downloads
Specifications
| Frequency range | 410…475 / 902 … 928 MHz |
| Vibration tolerance | 25 g, up to 2 kHz sinusoidal (over 90 % packet success rate) |
| Operating voltage | 3.3 ± 9% VDC |
| Power consumption | 440 mW (RX) / 3.4 W (TX at 1 W RF power) |
| Input I/F | USB 2.0 |
| Operating temperature | –40 … +70 °C |
| Size / Weight | 51 x 30 x 4.75 mm / 10 g |
| Antenna Connector | U.FL |
| Form Factor | PCIe MiniCard full size |
| Encryption | AES128 (for 410…475 MHz) as default / AES256 as an order option |
