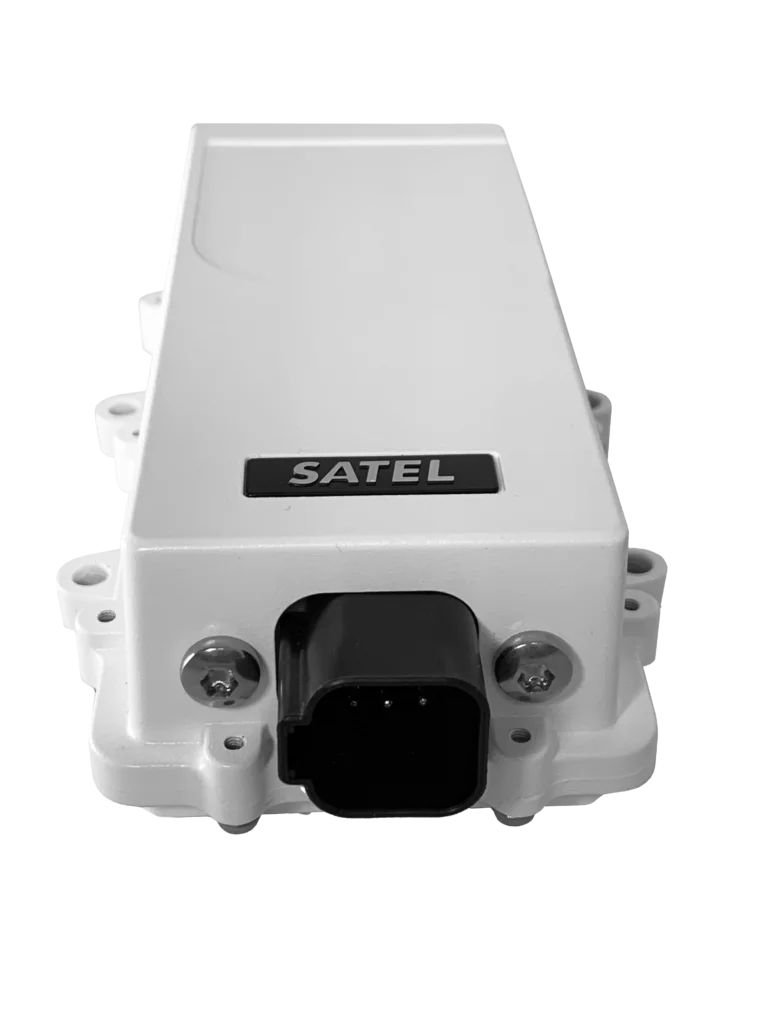

SATEL Proof-TR4+ / -TR9
SATEL Proof-TR4+ / -TR9 is a heavy-duty radio modem. It has the IP69K rating, which is the highest protection available.
SATEL RTK BRIDGE KIT
GNSS RTK correction solution to achieve cost-effective centimeter level accuracy beyond the effective range of cellular coverage.
Configurations
Heavy-duty solution for harsh environment
*) Versions with BR country limitations will follow later on.
- The model YM6920 is with AES128 encryption support, region all.
- The model YM6925 is w/o encryption support, region all.
- The model YM6930 is with AES128 encryption support, for US/CA 400/915.
- The model YM6935 is w/o encryption support, for US/CA 400/915.
- The model YM6940 is with AES128 encryption support, for AU/BR*) 400/915.
- The model YM6945 is w/o encryption support, for AU/BR*) 400/915.
- The model YM6950 is with AES128 encryption support, for EU 400/869.
- The model YM6955 is w/o encryption support, for EU 400/869.
Specifications
| Frequency range | 403 .. 473 / 869.4 … 869.65 / 902 … 928 MHz |
| Channel spacing | 12.5, 20, 25 kHz @ 403 .. 473 MHz 25, 50 kHz @ 869.4 … 869.65 MHz |
| Spreading method | Frequency hopping spread spectrum @ 902 … 928 MHz |
| Sensitivity, typical | -112 dBm / -108 dBm / -109 dBm |
| Carrier power | 1 W / 0.5 W / 1 W |
| Interface | RS-232 (TD, RD lines) |
| Data speed | Serial max.: – 115200 bps Radio max.: – 28800 bps @ 403 … 473 MHz – 38400 bps @ 869.4 … 869.65 MHz – 115200 bps @ 902 … 928 MHz |
| Operating voltage range | +7 … +27.5 Vdc (-15% / +20%) |
| Connectors | Deutsch DT04-6P-CL09 / TNC female |
| Size / Weight | 174 x 95 x 46 mm / <500 g |
| IP classification | IP67 / IP69K |
| Encryption support | AES128 as default / AES256 as an order option |
| CRF-1 (YC1101) | RG58, lenght 1 meter with TNC male / TNC female -connectors |
| CRF-50 (YC1150) | Length 50 cm with TNC male / TNC male from band-pass filter to radio |
| ECOFLEX10 (YC1004) | Low loss (0.9 dB / 10 m) cable for cable lengths upto 20 meter with N or TNC -connectors |
| ECOFLEX15 (YC1005) | Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors |
| NARS-1F (YC0200) | Interface adapter with D15 male / D9 female –connectors, 650 mA fuse. Including power supply wires and programming switch |
| NARS-1F-4A (YC0204) | Similar than NARS-1F, but with 4A fuse |
| NARS-EP2 (YC0275) | Adapter cable with Deutsch DT06-6S-CE06 / D15 female connectors, to be used with NARS interface adapters |
| Antennas | Half Wave, Quarter Wave, Helix, Directional and Omnidirectional Antennas |
| Power supply DIN (YP7524) | Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A |
| A-AC (YP0115) | Power supply for tabletop or wall mount usage. Input 100–240 Vac / Output 15 Vdc / 4.6 A |
| C-P-EP (YC0320) | Power cable 30 cm, Deutsch DT06-6S-CE06 / 4-pin ODU (to the repeater station to power up the radio) |
