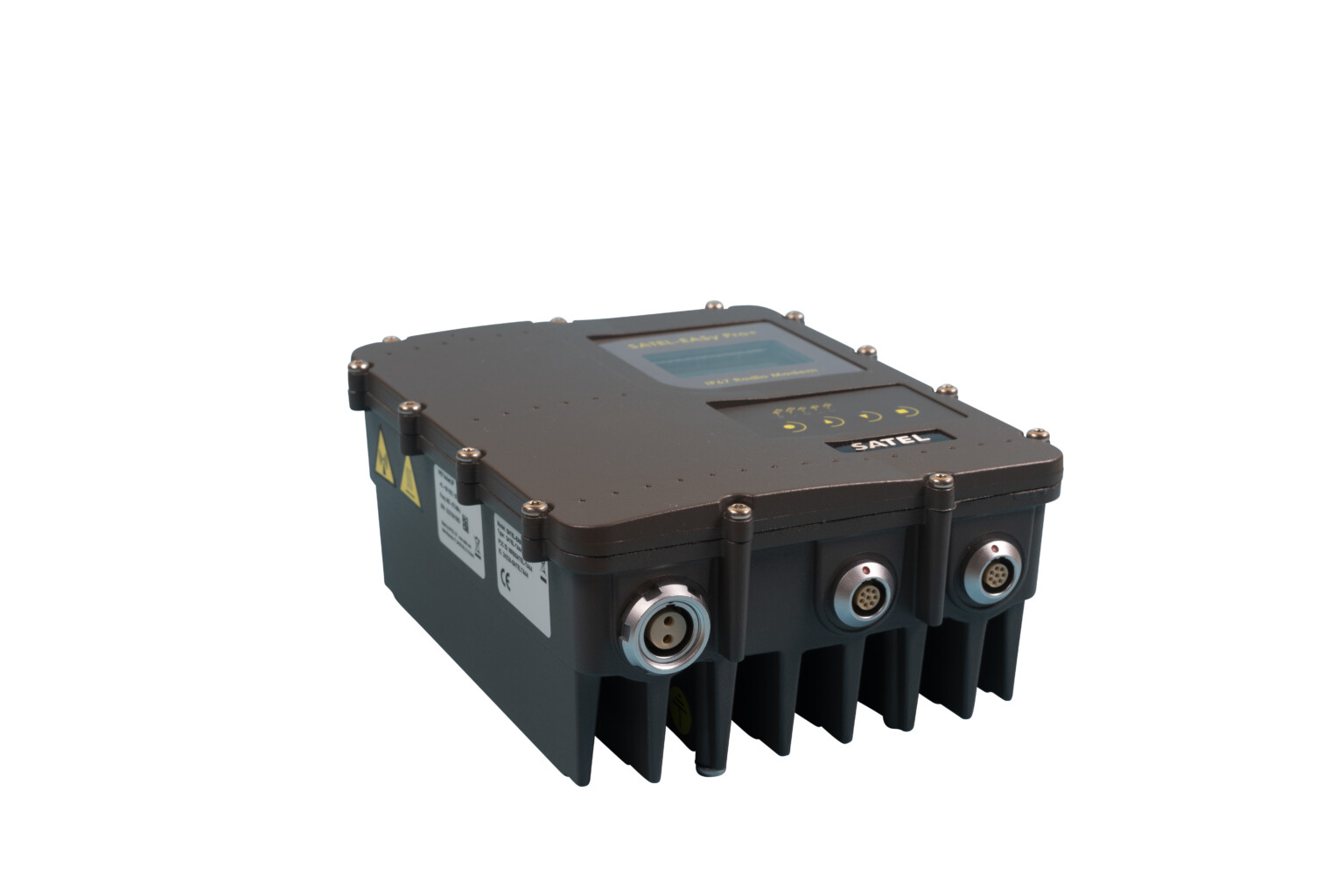

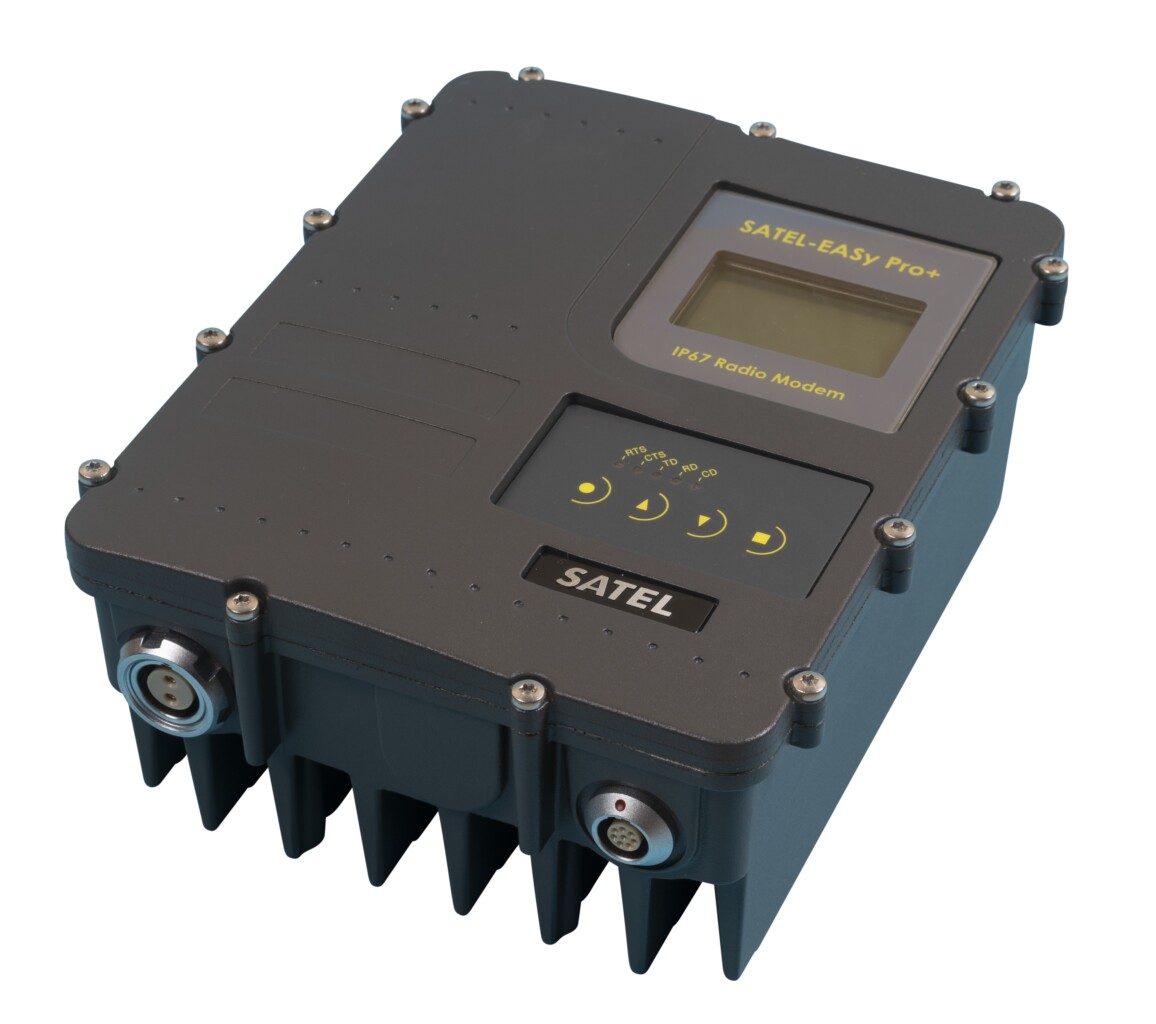

SATEL-EASY PRO+
New IP67 (NEMA 6) classified UHF radio modem with high 35 W output power and wide tuning range
SATEL-EASy+
SATEL-EASy+ offers a modern solution for various long-range applications.
SATEL Proof-TR4+ / -TR9
SATEL Proof-TR4+ / -TR9 is a heavy-duty radio modem. It has the IP69K rating, which is the highest protection available.
SATEL RTK BRIDGE KIT
GNSS RTK correction solution to achieve cost-effective centimeter level accuracy beyond the effective range of cellular coverage.
Downloads
Specifications
| Frequency range | 403 … 473 MHz |
| Tuning range | 70 MHz |
| Channel spacing | 12.5 / 20 / 25 kHz software selectable |
| Sensitivity max. / Carrier power | -114 dBm / 1 … 35 W (Limited 25 W output power is available as an order option) |
| Interface | RS-232 / HW model with data port 2: RS-232/-485/-422 (data/NMS) |
| Data speed max. | Radio 28800 / RS 115200 bps |
| Modulation | 4FSK, 8FSK, 16FSK |
| Operating voltage | +9 … +30 Vdc (-15% / +20%) |
| Power consumption | TX: 9 … 10 W @ 1W output power TX: 60 … 72 W @ 25 W output power TX: 84 … 97 W @ 35 W output power RX: 1.8 … 2.3 W Sleep mode: 0.9 … 1.4 W |
| Size weight | 180 x 138 x 71 mm with connectors / 1400 g |
| Connectors | Data 8-pin ODU / Antenna TNC female / Power 2-pin ODU |
| CRF-1 (YC1101) | RG58, lenght 1 meter with TNC male / TNC female -connectors |
| CRF-50 (YC1150) | Length 50 cm with TNC male / TNC male from band-pass filter to radio |
| ECOFLEX10 (YC1004) | Low loss (0.9 dB / 10 m) cable for cable lengths upto 20 meter with N or TNC -connectors |
| ECOFLEX15 (YC1005) | Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors |
| CRS-35W 8-pin (YC0368) | 2 m cable ODU 8-pin male / D9 female |
| CRS-35W 8-/7-pin (YC0369) | 2 m cable ODU 8-pin male / 7-pin male |
| CRS-35W 8-/8-pin (YC0359) | 2 m cable ODU 8-pin male / 8-pin male |
| CRS-35W 8-/8-pin (0/30) (YC0374) | 2 m cable 8-pin male (0 deg) / 8-pin male (30 deg) |
| RS232 ODU to USB-A (YC0232) | 1.8 m cable, ODU 8-pin male / USB-A |
| Antennas | Half Wave, Quarter Wave, Helix, Directional and Omnidirectional Antennas |
| Power Adapter 150W (YP1150) | ODU 2-pin male, C14 male IEC power inlet. IN, 100-240 Vac, OUT 12 Vdc / 12.5 A |
| Mains Cable C-M (YC0904) | With Europlug for YP1150 |
| C-P-Pro+ 2m (YC2957) | Power cable 2 m, ODU 2-pin male / 4 mm lab plugs |
| C-P-Pro+ 2m (YC1353) | Power cable 2 m, ODU 2-pin male / Alligator clip |
| PROG-35W 8-pin (YC0363) | 2 m cable ODU 8-pin male / D9 female, for programming |
