Satel

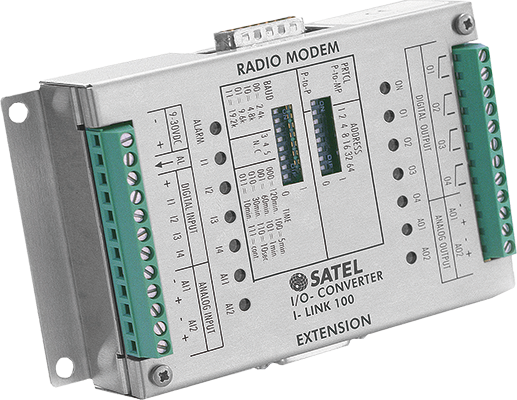

SATEL I-LINK 100
I/O-converter with 4 digital and 2 analog I/Os, also Modbus compatible version available.
SATEL-EASy+
SATEL-EASy+ offers a modern solution for various long-range applications.
SATEL-B2 MOTHERBOARD WITH ENCLOSURE
SATEL-B2 motherboard and SATEL radio module combinations inside an aluminium enclosure.
Configurations
Reliable Transmission Secured
Available models and product codes:
- SATEL I-LINK 100 (YI0007)
- SATEL I-LINK 100 Modbus compatible version (YI0017)
Downloads
Specifications
| Interface | RS-232 ± 15 Vdc |
| Analog inputs | 4 … 20 mA |
| Analog outputs | 4 … 20 mA |
| Digital inputs | 0 … 35 Vdc |
| Digital outputs | 0 … 250 Vac |
| Alarm output | 0 … 35 Vdc / 30 mA |
| Indicators | ON/OFF, Analog / Digital In / OUT, Alarm |
| Data speed | 2400 … 19200 bps |
| Size/Weight | 123 x 85 x 30 mm / 120 g |
| Connectors | D-15 Modem / Extension units Screw Inputs / Outputs |
