SATEL BT-RS232

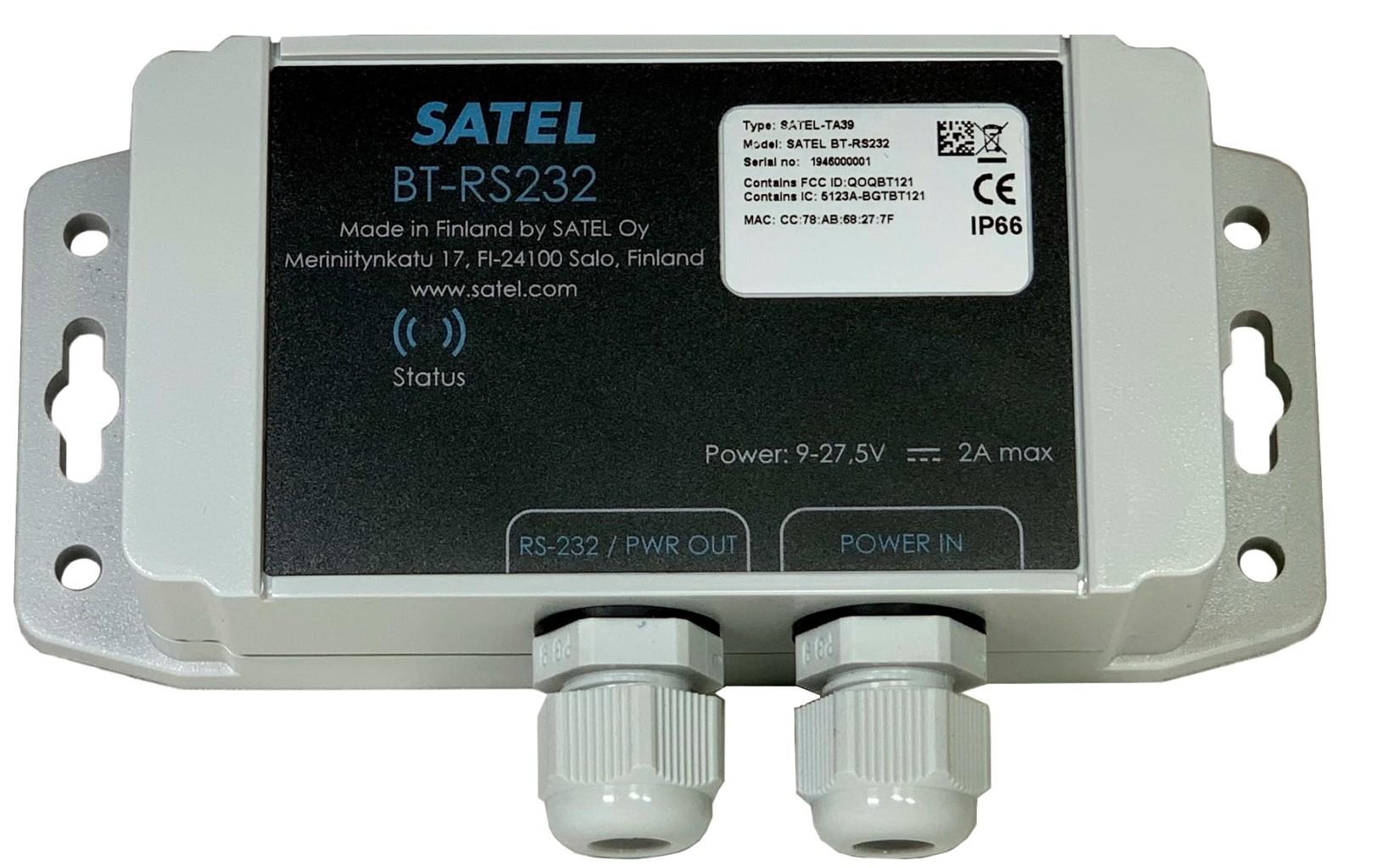

SATEL BT-RS232 is an IP66-rated robust and waterproof Bluetooth to RS-232 serial port adapter.
Specifications
| Electrical interface | RS232 |
| Interface connector | Phoenix 7-pin |
| Data speed of serial interface | 115200 bps |
| TX power | +12 dBm with Bluetooth BR/EDR |
| RX sensitivity | -96 dBm |
| Operation mode | Slave mode |
| Operating voltage | +9…+27.5Vdc(-15%/+20%) |
| Fuse requirement | 2A |
| Typical power consumption | Adapter < 1 W Supply to sensor: 15 W max |
| Inrush current, power turned ON | < 12A, duration < 50μs |
| Temperature range | Type approval conditions: -20 °C … +55 °C Functional: -40 °C …+70 °C Storage: -40 °C …+85 °C |
| Vibration | Up to 5G |
| IP rating | IP66 |
| Construction | Polycarbonate case |
| Size L x W x T | 151 x 66 x 43 mm |
| Weight | 192 g |
